Pull-out System INBOX 640 for Tall Cabinets | up to 120 kg | Schock telescopic slides
Price range: $ 205.88 through $ 220.27

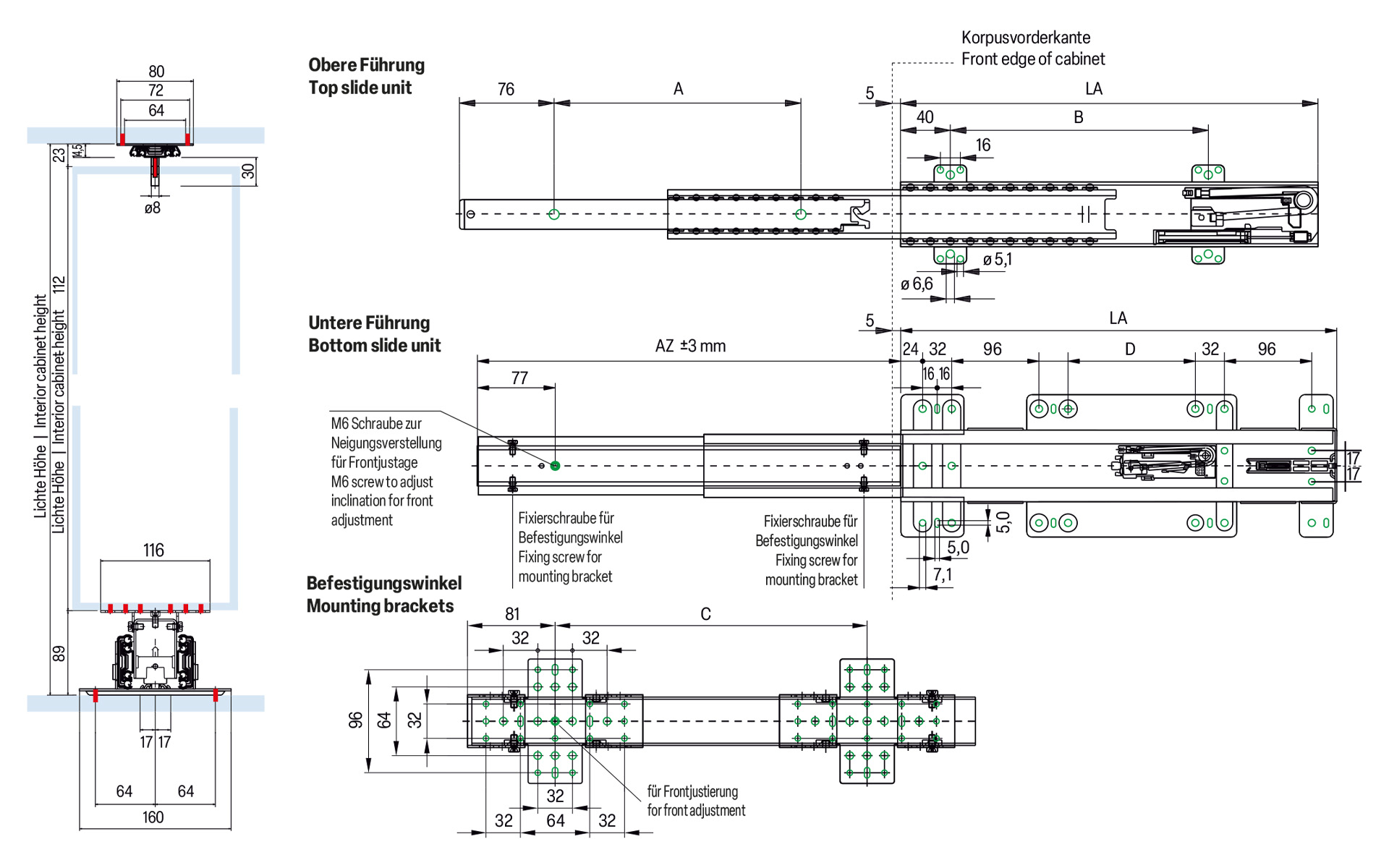

Cross-section: 89 x 160 mm | Length: 450 to 600 mm | Partial Extension | Soft Self-closing Mechanism
Description

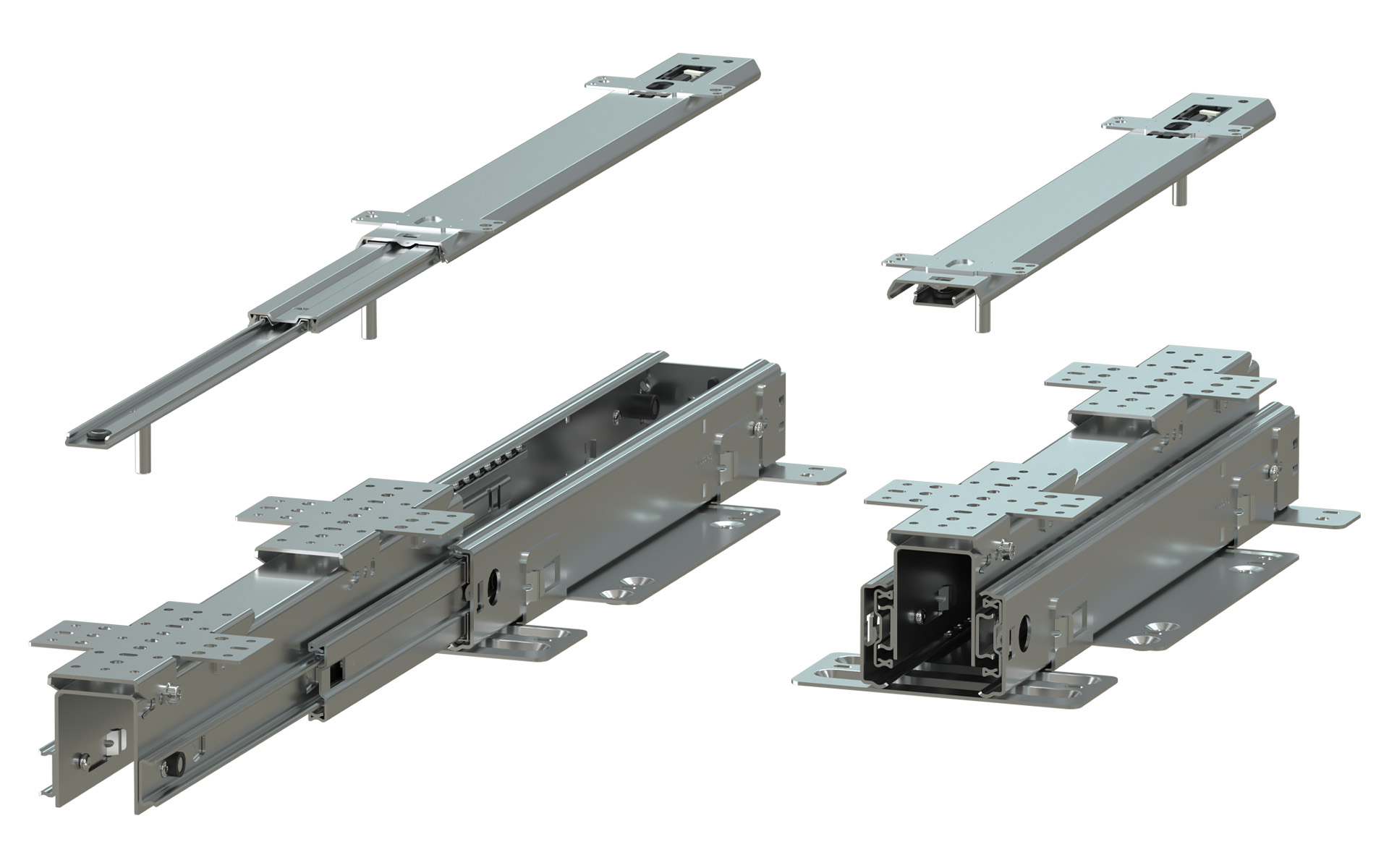

Tall Cabinet Pull-out System by Schock Metall
Perfect for living, office, and bedroom furniture, offering exceptional load capacity of up to 120 kg
Key Features:
- Partial extension with load capacity up to 120 kg
- Guided at both top and bottom
- Mounting brackets with front adjustment
- Soft self-closing mechanism with 50 mm damping at both top and bottom guides
- Set packaging pre-assembled for installation, including assembly instructions
Materials:
- Tracks made of galvanized steel
- Ball cages made of zinc-plated steel
- Balls made of hardened carbon steel
Operating temperature: +10 C to +40 C (50 F to 104 F) Storage and transport temperature: -20 C to +60 C (-4 F to 140 F)
Notes:
The 50 mm long self-closing damping system, with integrated air-vacuum dampers, ensures automatic and quiet closure of the pull-out. The upper telescopic rail provides lateral stabilization for the custom-built pull-out element.
The specified load capacity is the maximum value for the lower telescopic rails under evenly distributed surface loads.
Additional information

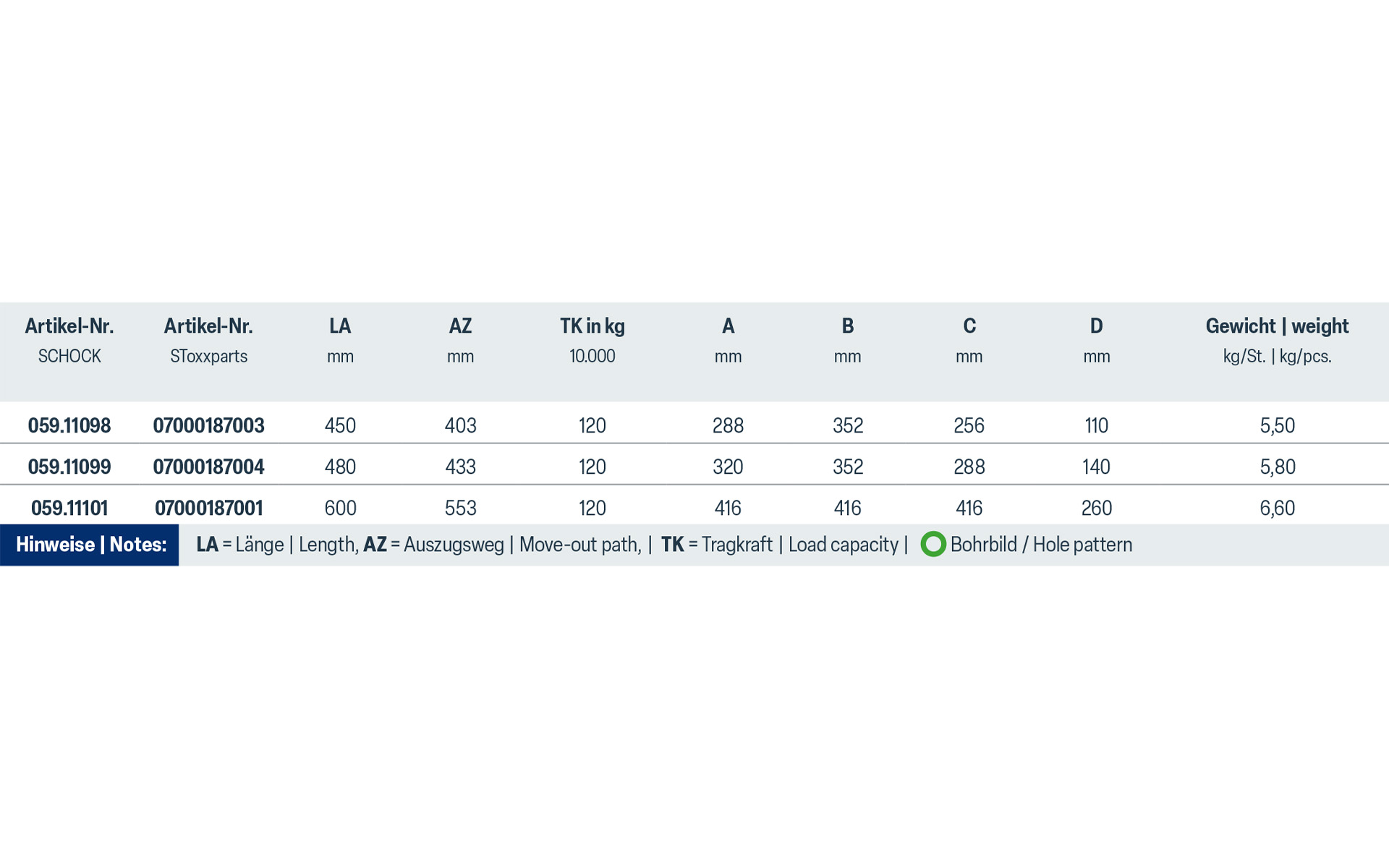

| Cross section | 160.0 mm x 89.0 mm (6.30 in x 3.50 in) |
|---|---|
| Material | Cold drown carbon steel |
| Function | Soft-close |
