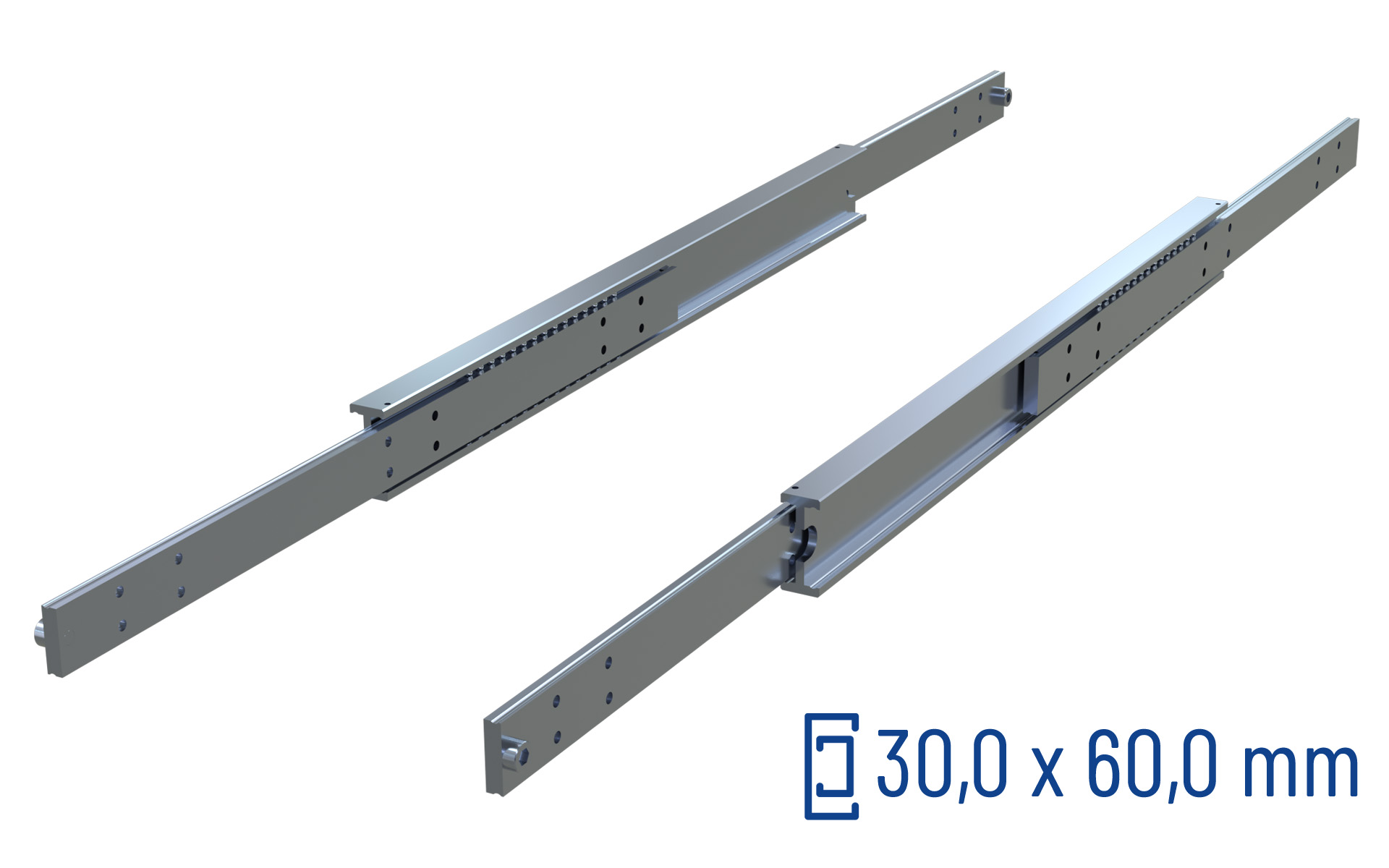

Telescopic slide full extension SDTS-60 | up to 440 kg | Schock telescopic slides

Description

The telescopic slides of the SDTS series offer high corrosion resistance due to their material. The manufacturing of the guide elements from solid material provides this slide with high rigidity, making it suitable for demanding applications.

Extension: 100%

Material: Stainless steel 316L (1.4404)

Length: 200 mm to 2000 mm

Cross-section: 30 x 60 mm

Extension path: 200 mm to 2000 mm

Load capacity: up to 440 kg/pair

Operating temperature: -40 to +200 C

The stainless steel telescopic slides of the SDTS series are characterized by high precision and excellent shock and vibration resistance. The movable I-beam design ensures that SDTS telescopic slides are robust against applied loads in the extended state. Applications include fire truck/THW truck drawers, generator supports, and outdoor constructions. The SDTS telescopic slides are made without any plastic components and are therefore suitable for use at extreme temperatures.

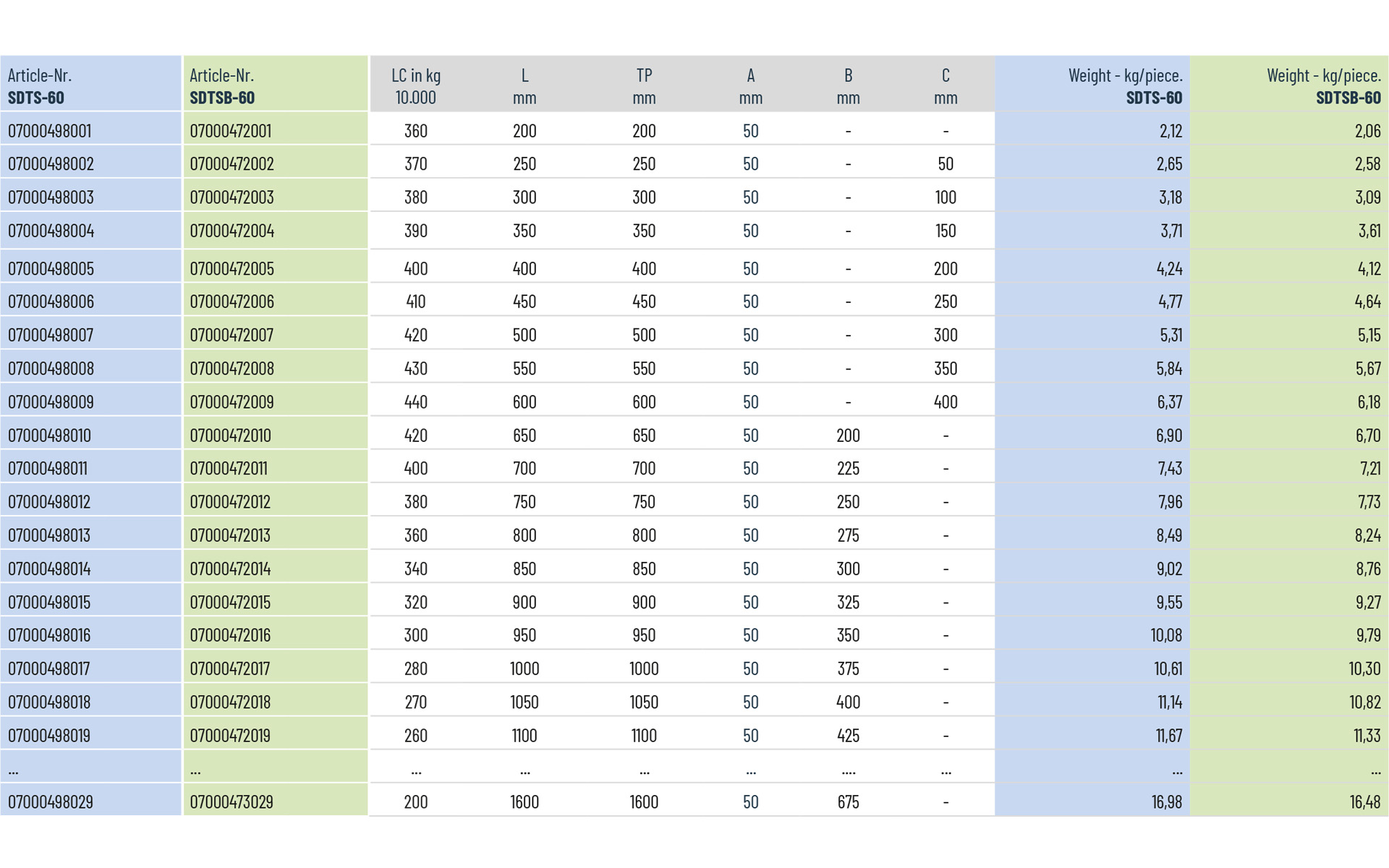

Load capacities:

The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction, with the load evenly distributed over the inner slide.

Note:

As these telescopic slides are custom-made for you upon order, they are excluded from returns. The slides are secured during transport with high-quality wooden packaging.
