Description

Functions:

• Hold-in

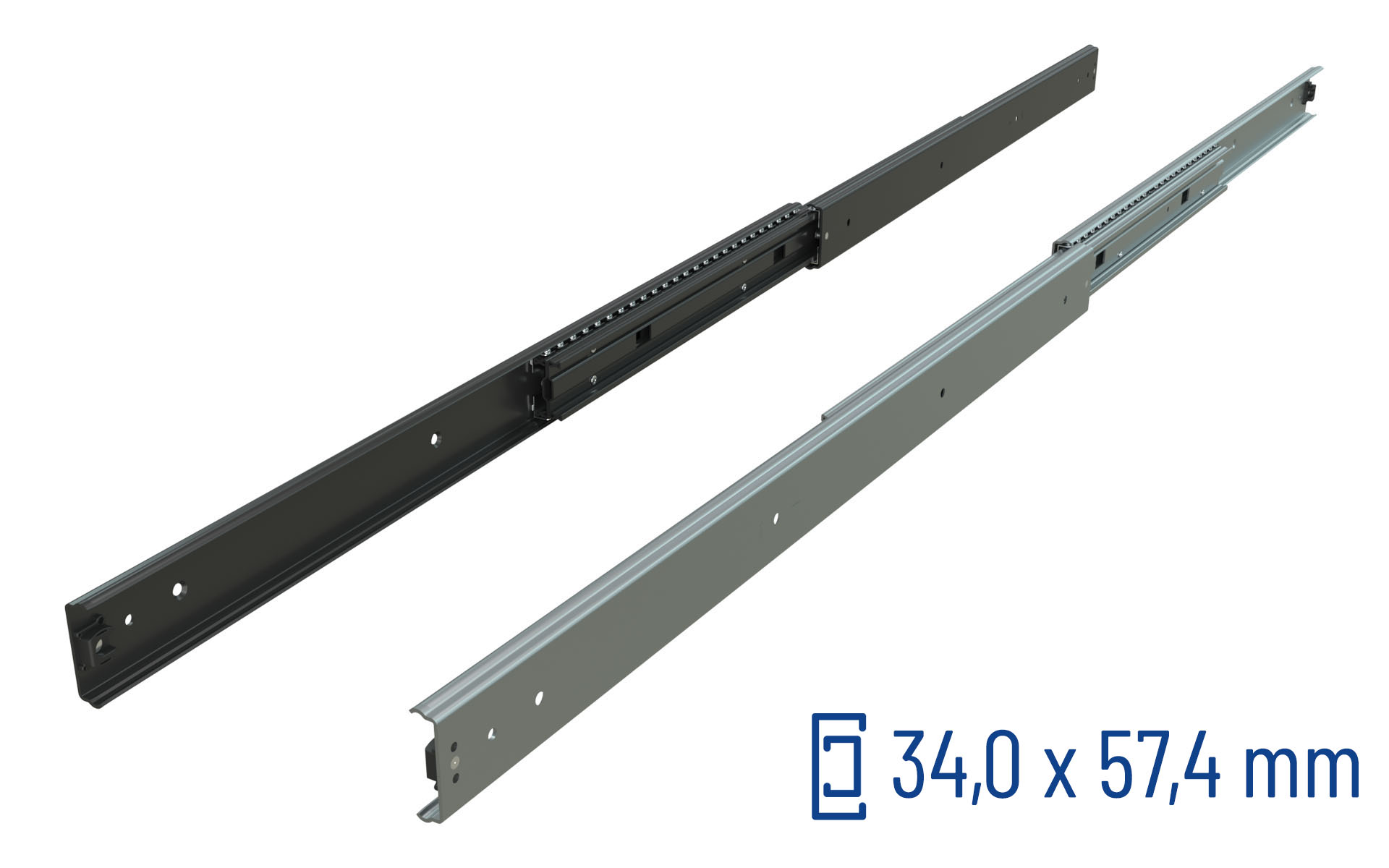

Schock telescopic slide Over extension Series 048

The Schock telescopic slide Over extension Series 048 is the ideal solution for a wide range

of applications where ease of use and seamless accessibility

are essential.

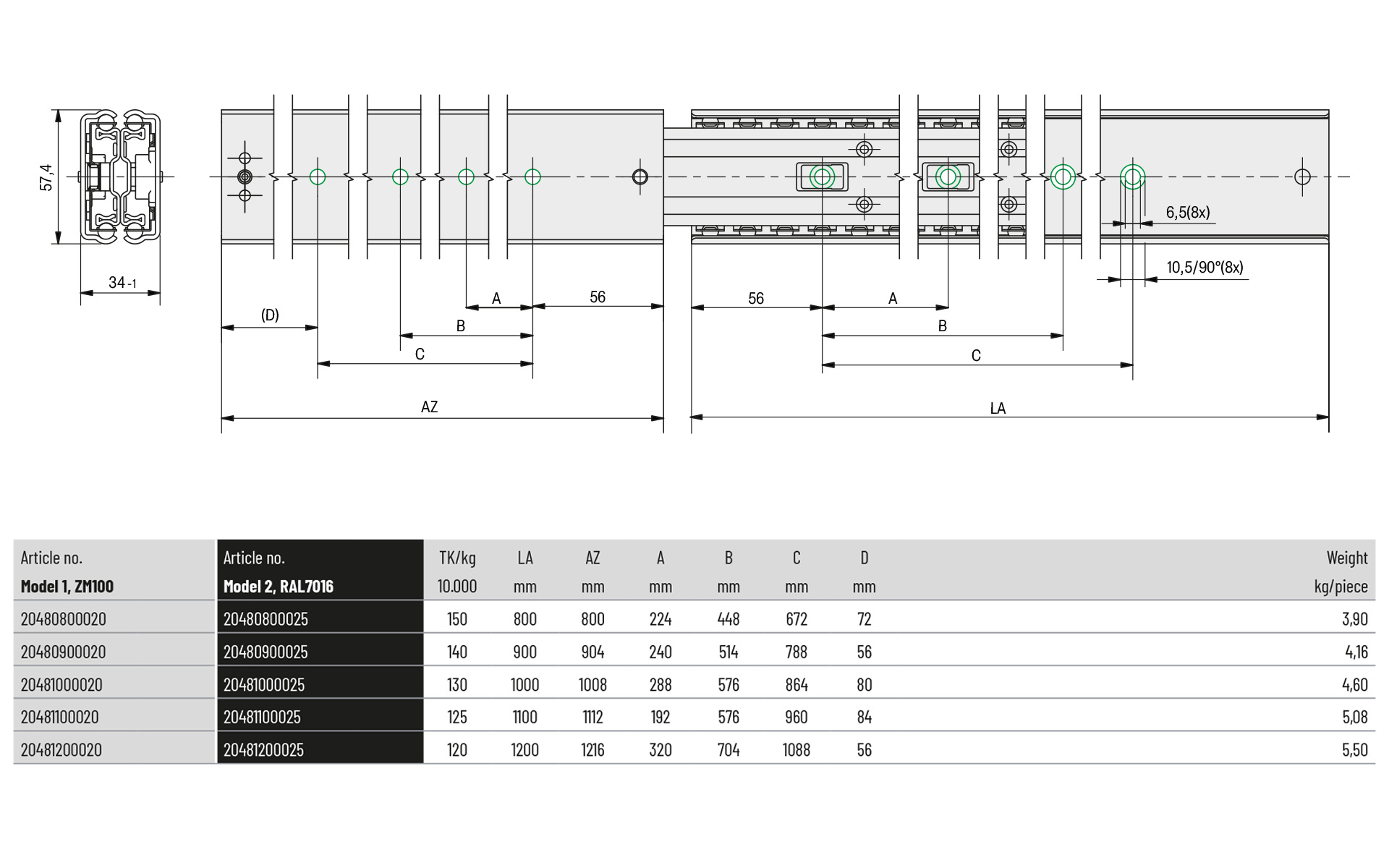

With dimensions of 34.0 x 57.4 mm (w/h) and available lengths from 800 mm to 1200 mm,

they offer exceptional flexibility and adaptability for various projects.

These Over extensions come with a useful function, the hold-in.

This function not only ensures safe handling but also provides a

comfortable and reliable use.

The Schock Over extension telescopic slides of Series 048 are versatile, as they are suitable

for both vertical and horizontal mounting. This enables their seamless

integration into a wide range of projects.

Technical Data:

• Load capacity up to 150 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C
• Operating temperature with Soft-Close: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted

telescopic slide pair with even load distribution using all designated

mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
