Name: Telescopic slide over extension SQSRT-70 | up to 220 kg | Schock telescopic slides
SKU: 07000505000
Availability: InStock

Price range: $ 1,219.51 through $ 5,366.61

Cross-section: 38 x 70 mm | Length: 300 to 1600 mm

Slide length

1000 mm (39.37 in)
1050 mm (41.34 in)
1100 mm (43.31 in)
1150 mm (45.28 in)
1200 mm (47.24 in)
1250 mm (49.21 in)
1300 mm (51.18 in)
1350 mm (53.15 in)
1400 mm (55.12 in)
1450 mm (57.09 in)
1500 mm (59.06 in)
1550 mm (61.02 in)
1600 mm (62.99 in)
300 mm (11.81 in)
350 mm (13.78 in)
400 mm (15.75 in)
450 mm (17.72 in)
500 mm (19.69 in)
550 mm (21.65 in)
600 mm (23.62 in)
650 mm (25.59 in)
700 mm (27.56 in)
750 mm (29.53 in)
800 mm (31.50 in)
850 mm (33.46 in)
900 mm (35.43 in)
950 mm (37.40 in)

Travel path

1050 mm (41.34 in)
1125 mm (44.29 in)
1200 mm (47.24 in)
1275 mm (50.20 in)
1350 mm (53.15 in)
1425 mm (56.10 in)
150 mm (5.91 in)
1500 mm (59.06 in)
1575 mm (62.01 in)
1650 mm (64.96 in)
1725 mm (67.91 in)
1800 mm (70.87 in)
1875 mm (73.82 in)
1950 mm (76.77 in)
2025 mm (79.72 in)
2100 mm (82.68 in)
2175 mm (85.63 in)
2250 mm (88.58 in)
2325 mm (91.54 in)
2400 mm (94.49 in)
525 mm (20.67 in)
600 mm (23.62 in)
675 mm (26.57 in)
750 mm (29.53 in)
825 mm (32.48 in)
900 mm (35.43 in)
975 mm (38.39 in)

Load Capacity

120 kg (264.55 lbs)
125 kg (275.58 lbs)
130 kg (286.60 lbs)
135 kg (297.62 lbs)
140 kg (308.65 lbs)
145 kg (319.67 lbs)
150 kg (330.69 lbs)
155 kg (341.72 lbs)
160 kg (352.74 lbs)
165 kg (363.76 lbs)
170 kg (374.79 lbs)
175 kg (385.81 lbs)
180 kg (396.83 lbs)
185 kg (407.85 lbs)
190 kg (418.88 lbs)
195 kg (429.90 lbs)
200 kg (440.92 lbs)
205 kg (451.95 lbs)
210 kg (462.97 lbs)
215 kg (473.99 lbs)
220 kg (485.02 lbs)

Clear selected

SKU: 07000505000 Categories: Heavy Duty, Over extension

Description

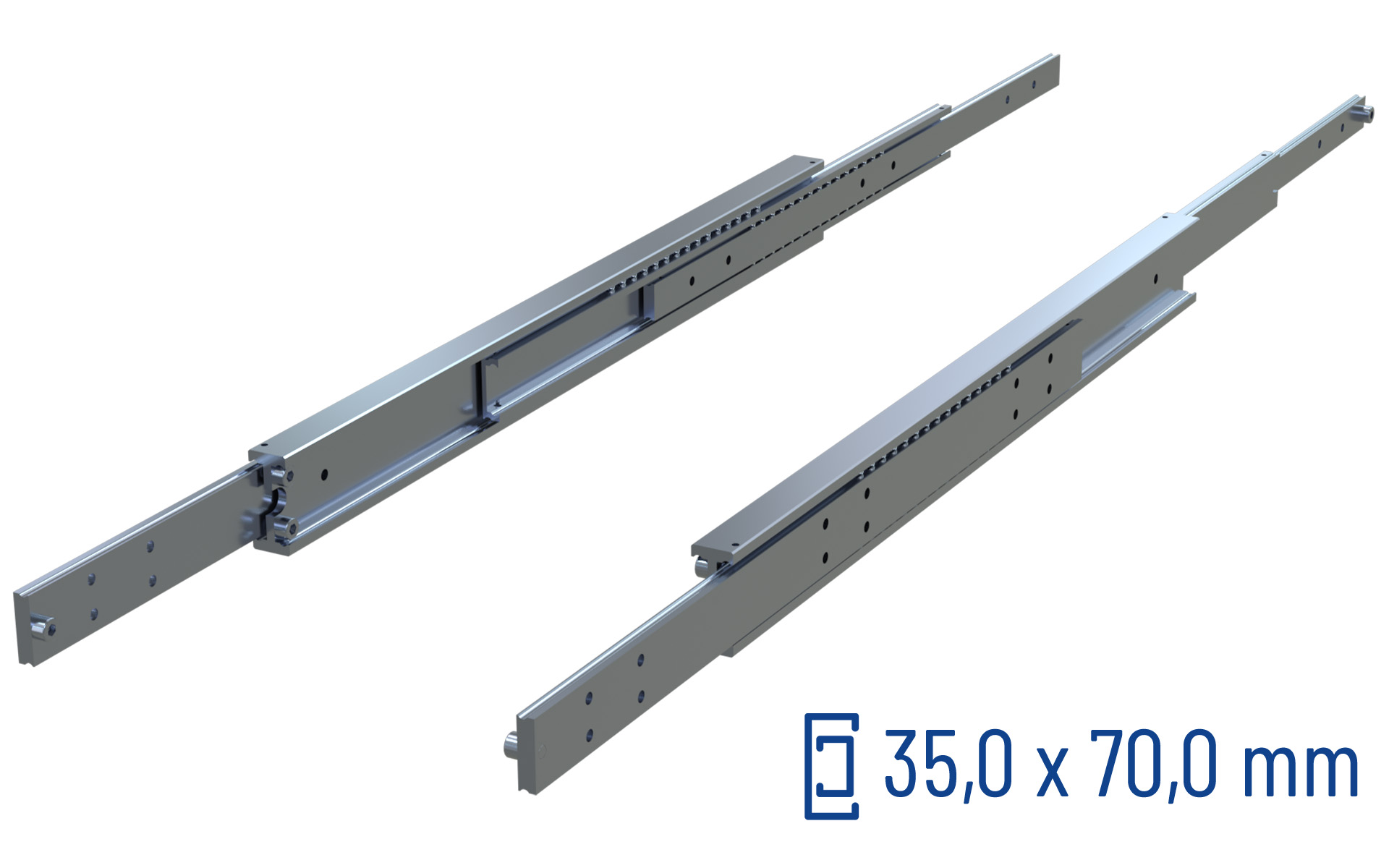

The telescopic slide of the SQSRT series offers a standard extension of 150%. The manufacturing of the guide elements from solid material provides this slide with high rigidity, making it suitable for demanding applications.

Extension: 150%

Material: Stainless steel 316L (1.4404)

Length: 300 mm to 1600 mm

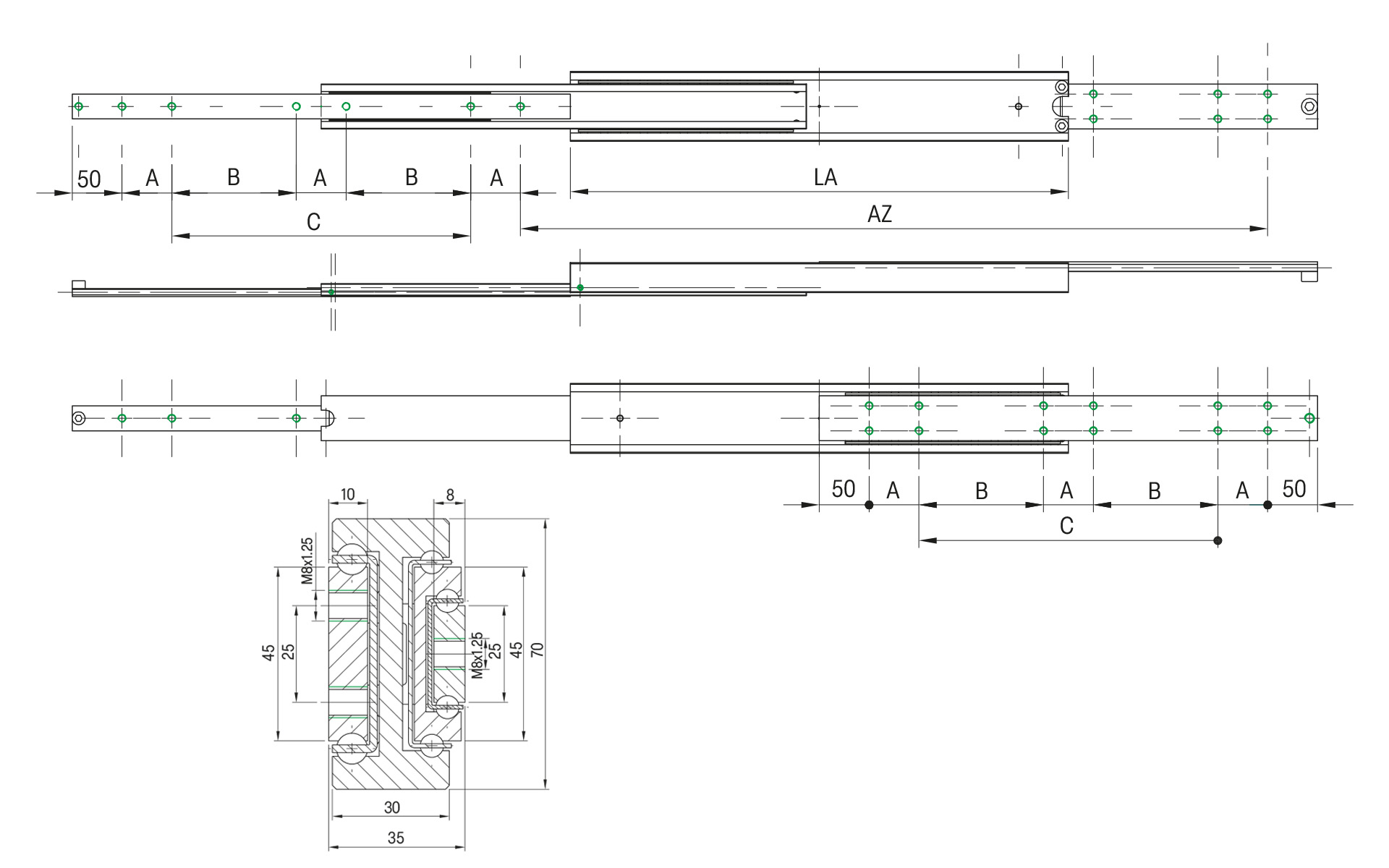

Cross-section: 38 x 70 mm

Extension path: 450 mm to 2400 mm

Load capacity: up to 220 kg/pair

Operating temperature: -40 to +200 C

The stainless steel telescopic slide of the SQSRT series is characterized by high precision and excellent shock and vibration resistance. With an extension of 150% of the closed length, the slide is ideal for vehicles with limited space. Other applications include supporting generators, aerial work platforms, and fire trucks.

The use of stainless steel ensures corrosion resistance. The telescopic slide of the SQSRT series is made without any plastic components and is therefore suitable for use at extreme temperatures. Due to the movable I-beam, the slide is robust against loads in the extended state.

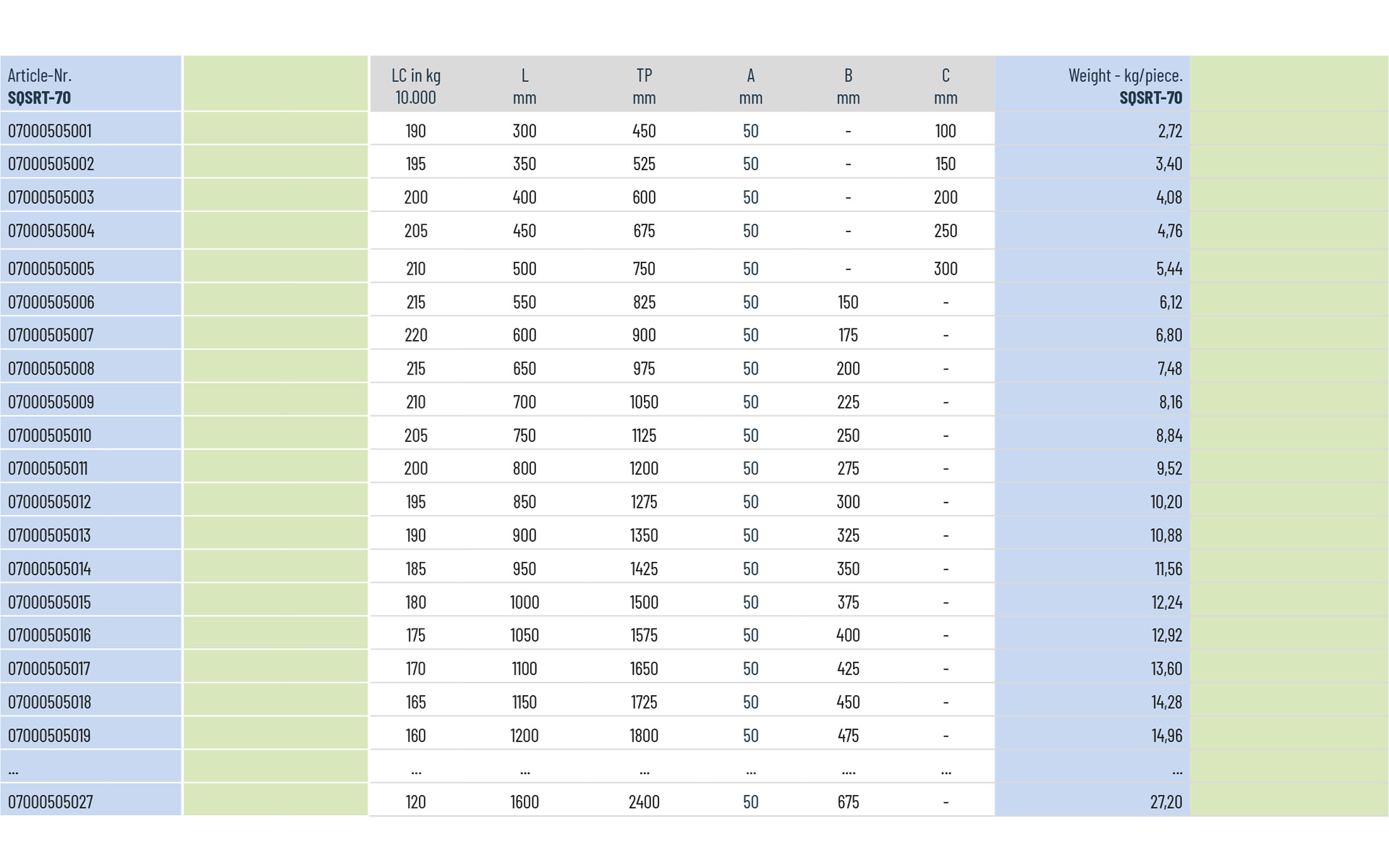

Load Capacities:

The telescopic slides offer high load capacity and compact dimensions. The maximum load capacity is specified for fully extended slide pairs installed in the main axis direction, with the load evenly distributed over the inner slide.

Note:

As these telescopic slides are custom-made for you upon order, they are excluded from returns. The slides are securely delivered with high-quality wooden packaging.
