Description

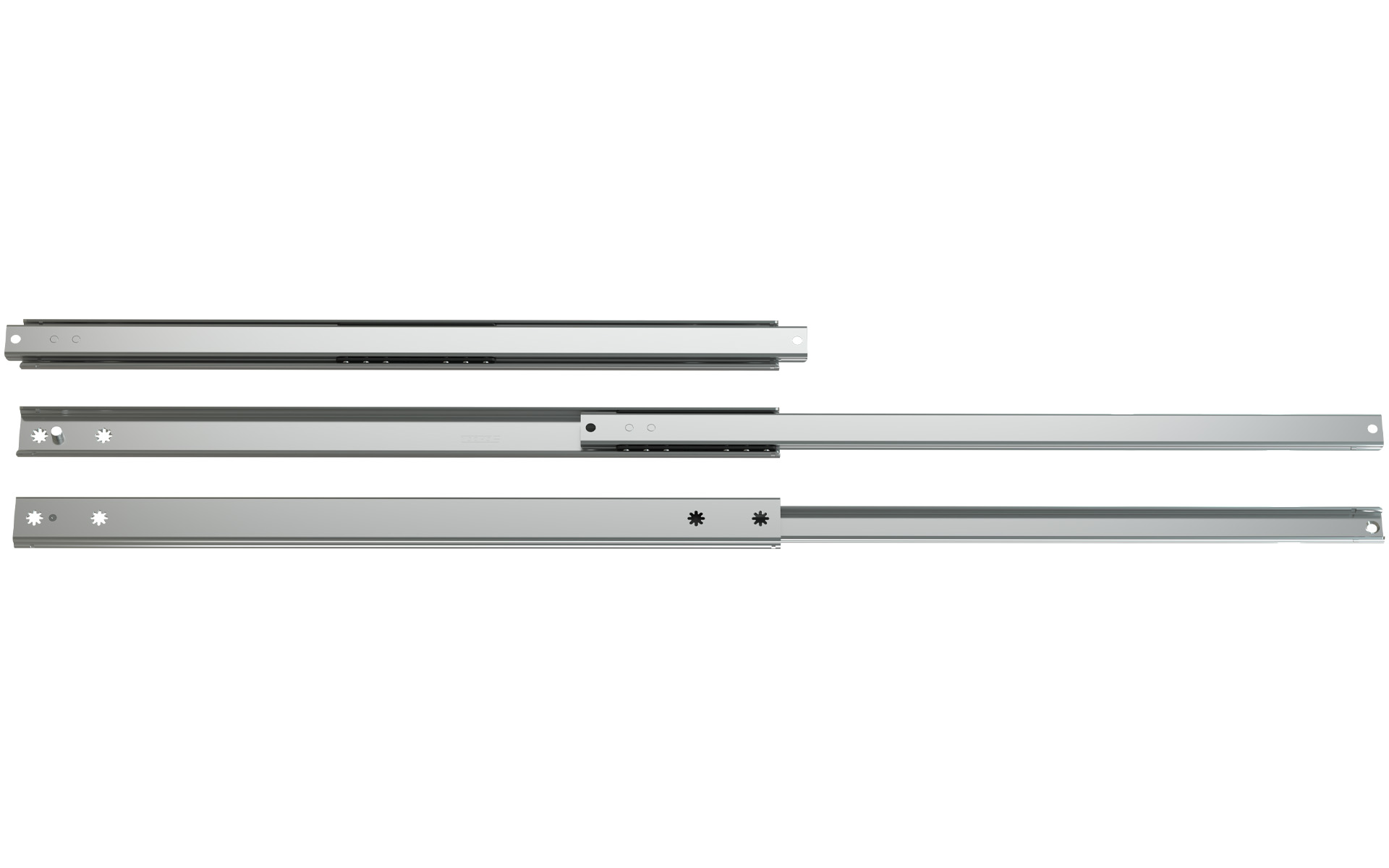

Telescopic Slides Schock Metall® Partial-extension Series 010

Item price and sale per piece

Telescopic slides Series 010, hot-dip galvanized steel, width 10 mm, partial-extension with center detent

• Partial-extension
• Load capacity up to 15 kg per pair
• Extendable on both sides with center detent
• Length: 340 mm
• Extension length: 260 mm on both sides

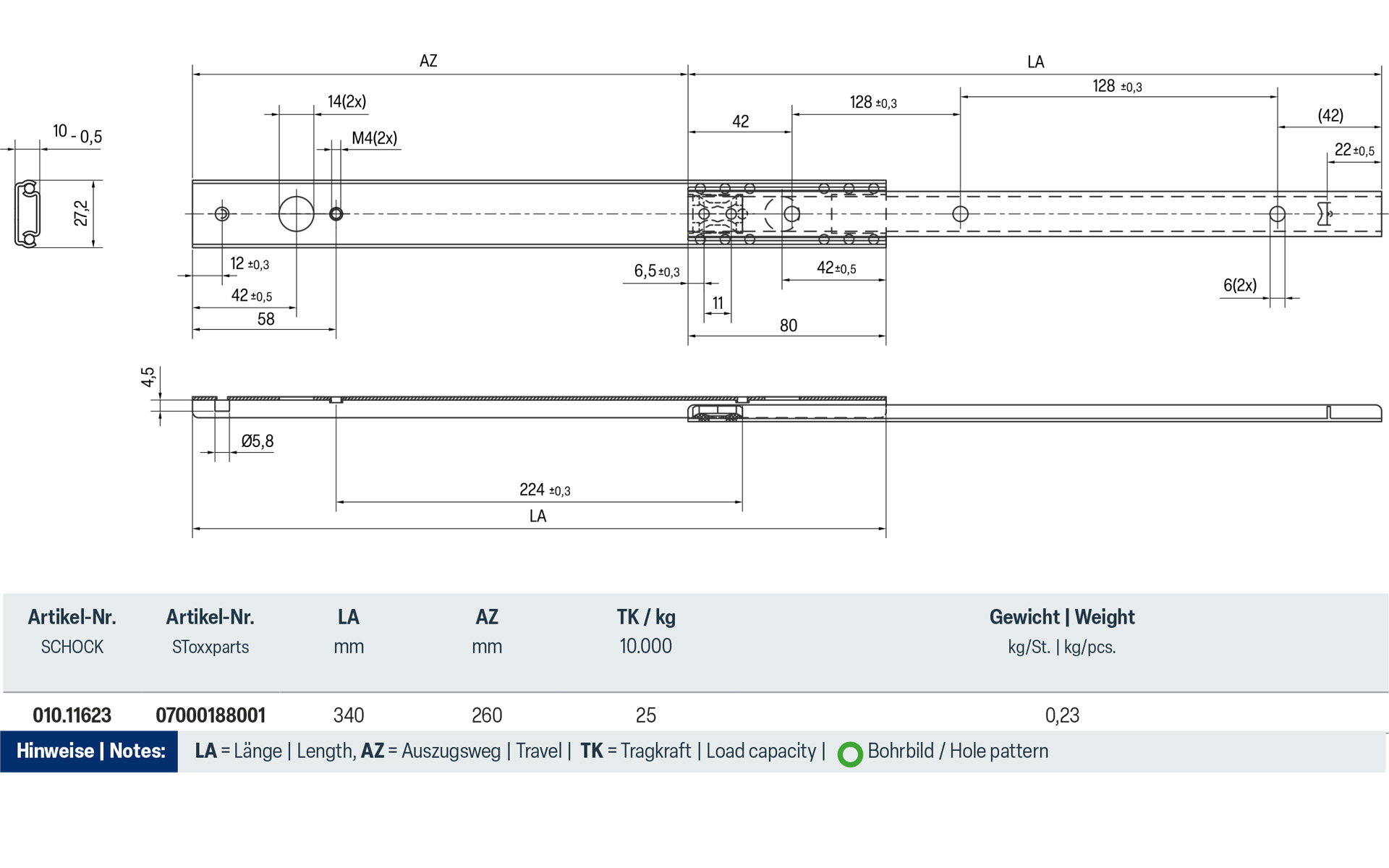

• Hole pattern outer rail: 2 x M4 threads (58 – 224 mm)
• Hole pattern inner rail: 3 x holes D 6 mm (42 – 128 – 128 mm)

Material:

• Rails made of hot-dip galvanized steel
• Ball cages made of plastic
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature +10°C to +40°C
• Storage and transport temperature -20°C to max. +80°C

Notes:

The center detent secures the guides extendable on both sides in the closed position.

The specified load capacities are maximum values for a vertically mounted telescopic slide pair with even load distribution using all designated mounting positions.

Mounting is vertical with side cutouts at the front of the drawer or horizontal with a shadow gap under the drawer. The load capacity in horizontal mounting is approximately 60% lower than in vertical mounting.
