Telescopic slide partial extension Series 017 | Schock telescopic slides

Description

Functions:

• Extendable on both sides

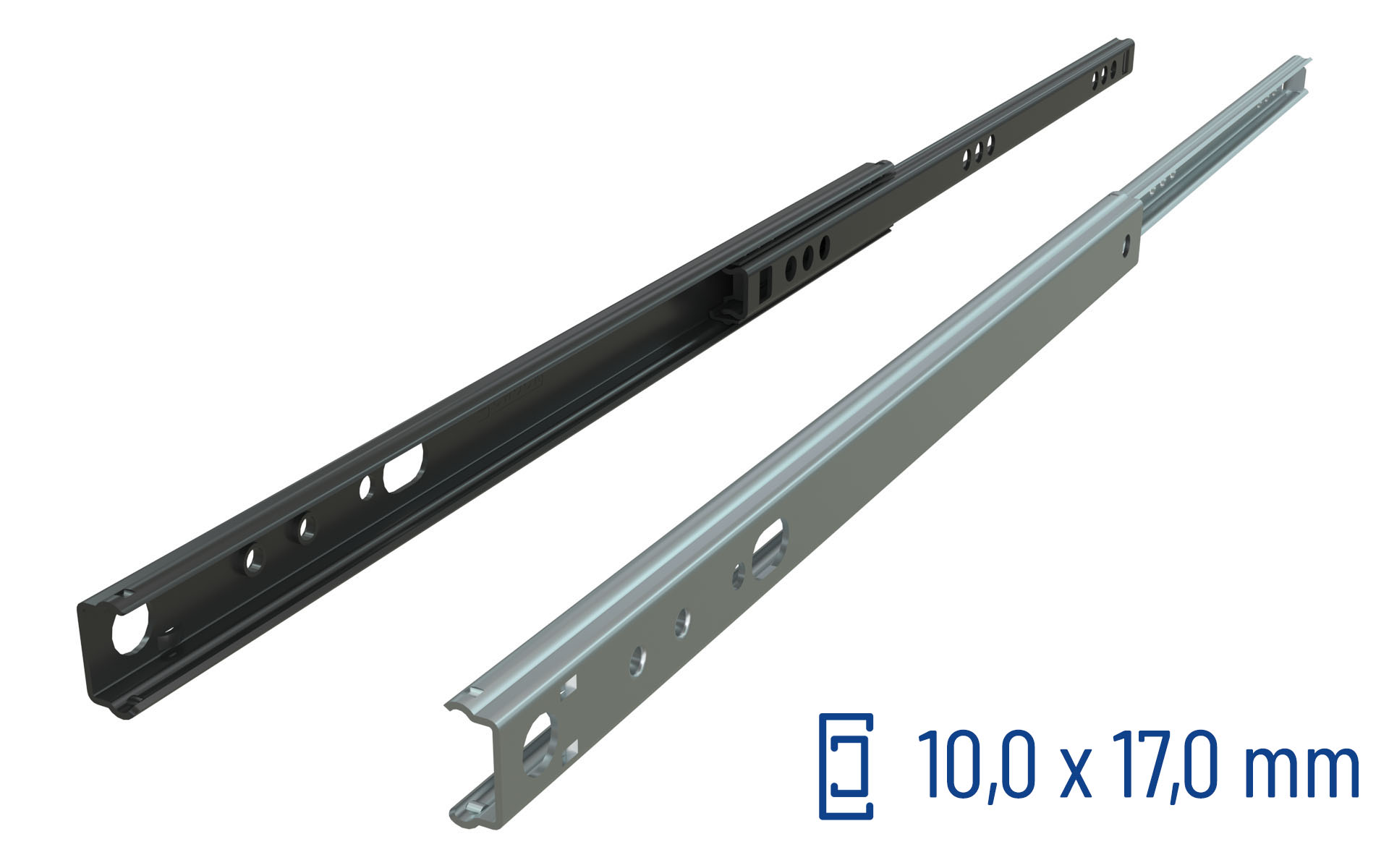

Schock telescopic slide Partial extension Series 017

The Schock telescopic slide Partial extension Series 017 is the ideal solution for a wide range

of applications where ease of use and seamless accessibility

are essential.

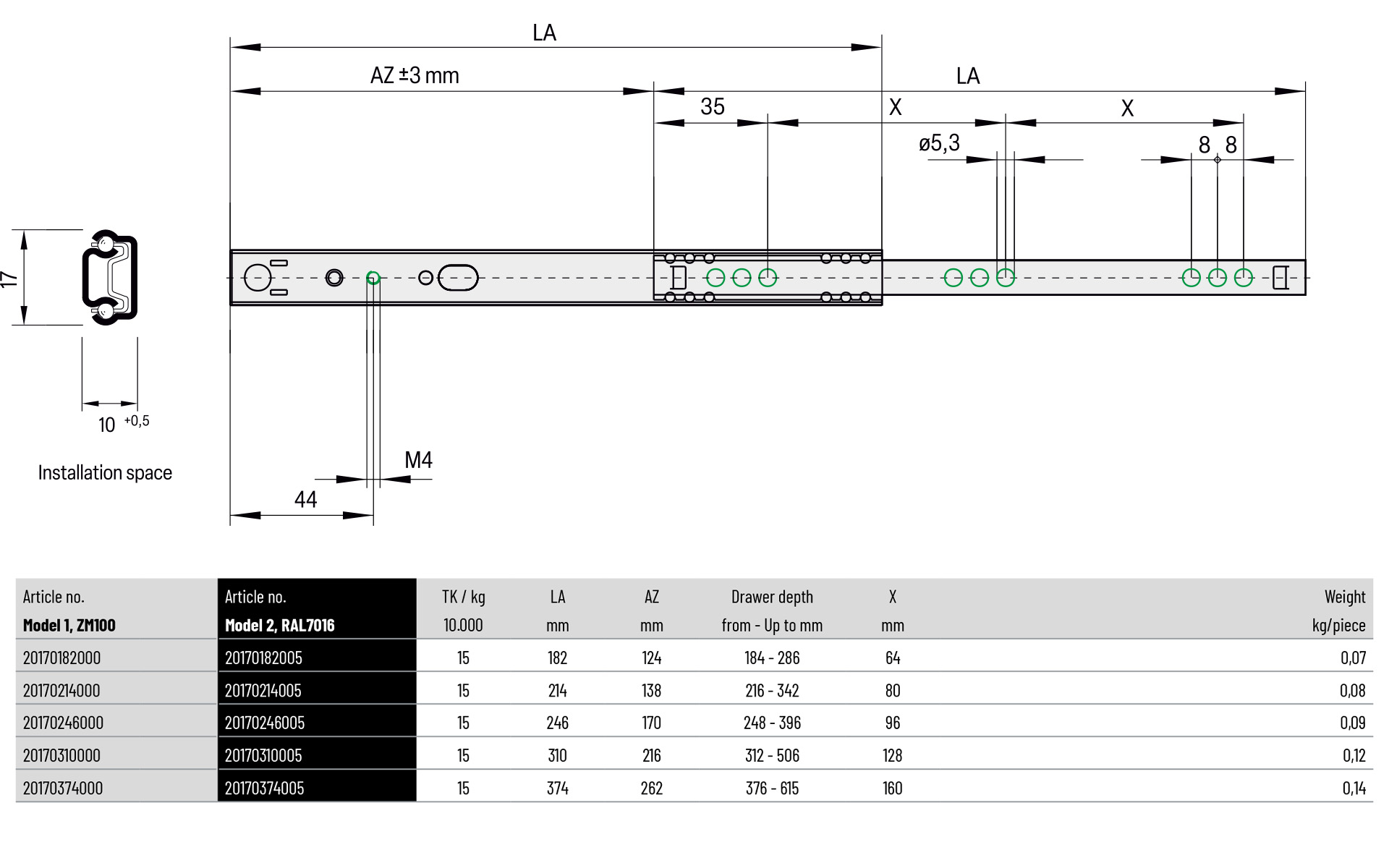

With dimensions of 10.0 x 17.0 mm (w/h) and available lengths from 182 mm to 374 mm,

they offer exceptional flexibility and adaptability for various projects.

These Partial extensions come with a useful function,

extendable on both sides.

These functions not only ensure safe handling but also provide

comfortable and reliable use.

The Schock Partial extension telescopic slides of Series 017 are versatile,

as they are suitable for both vertical and horizontal mounting. This enables

their seamless integration into a wide range of projects.

Technical Data:

• Load capacity up to 15 kg/pair at 10,000 cycles

Material:

• Rails made of galvanized steel (ZM100)
• Ball cages made of galvanized steel (ZM70)
• Balls made of hardened C-steel

Temperature Range:

• Operating temperature: -20 C to +70 C
• Operating temperature with Soft-Close: +10 C to +40 C

Notes:

The specified load capacities are maximum values for a vertically mounted

telescopic slide pair with even load distribution using all designated

mounting positions.

WARNING: In case of flat mounting , the load capacity is reduced by up to 75%.
